Variables

Variables are used to store data during process execution.

They allow:

Saving intermediate results
Passing data between steps
Simplifying complex expressions

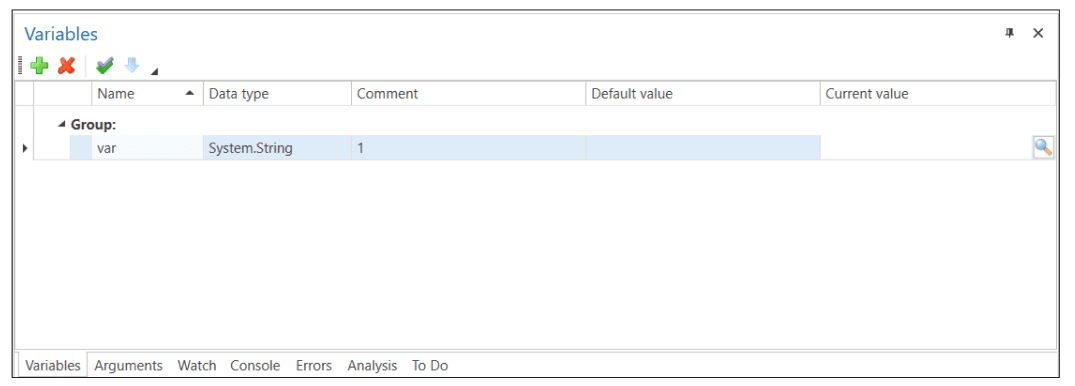

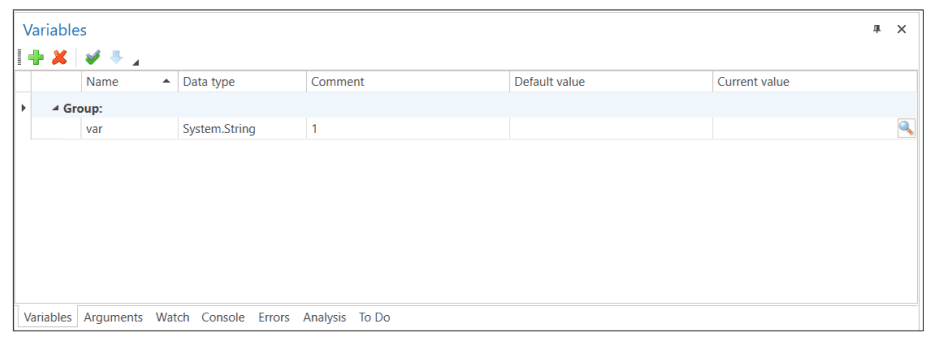

All process variables are managed on the Variables panel. By default, it is located at the bottom of the screen:

Variable structure:

Parameter	Required?	Description
Name	Yes	Unique name (e.g., `userName` or `itemCount`). Defined in accordance with the rules of the selected language (C#, Python, or JavaScript).
Group	No	Helps sort variables by common attribute (e.g., “User Data”)
Data type	Yes	`String`, `Int32`, `List[[[P0002]]]` and others.
Default value	No	Initial value (`""`, `0`, `null`). The result of the expression will be assigned to the variable. For example, if no default value is specified, its initial value will be `null`.
Comment	No	Description of the variable’s purpose

⚠️

For the type Double the default value must be written in 0.0 or 0d format._

Creating variables

You can add a variable in two ways:

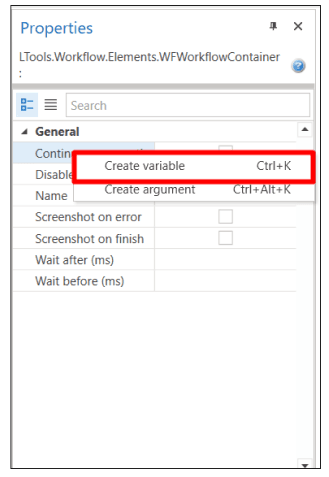

Method 1: Through element properties

Select an element in the process.
In its properties, find the required field (e.g., “Text”).
Right-click → Create variable – the type will be determined automatically.

Method 2: On the Variables panel

Open the “Variables” panel (at the bottom of the screen).
Click “Create variable” .
Fill in the data:
- Name – totalPrice
- Type – Double (you can enter 0.0 or 0d as the default value)
- Group – “Finance” (optional)

If the variable is not assigned a default value, its value will be null.

You can drag the variable into the element property.

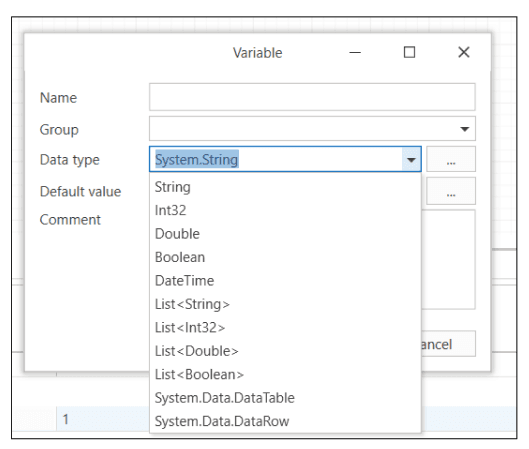

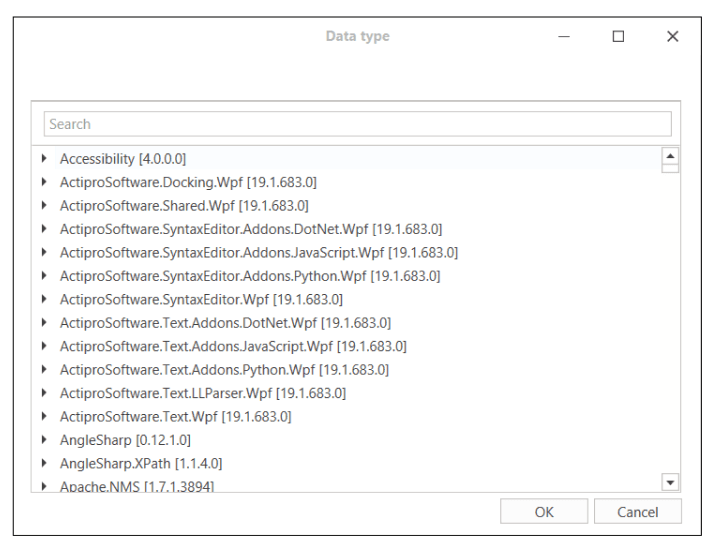

The variable data type is an autocomplete value. For example, just enter List<String> and press Enter. The system will automatically convert the type to System.Collections.Generic.List<System.String>. To see the full list of available types, click the ”…” button next to the corresponding field. Then select the desired value from the list:

For working with complex data types (e.g., List<String>) use the generic type selection assistant:

Data types of variables

Data type	Example value	When to use
`String`	`"Привет"`	Text
`Int32`	`42`	Integers
`Double`	`3.14`	Floating-point numbers
`Boolean`	`true`/`false`	Boolean values
`List[[[P0008]]]`	`["A", "B"]`	Data lists
`DateTime`	`2025-01-01`	Dates and time

For Double use a dot: 10.5, not 10,5.

List<> requires specifying the type of elements (e.g., List<Int32>).

Managing variables

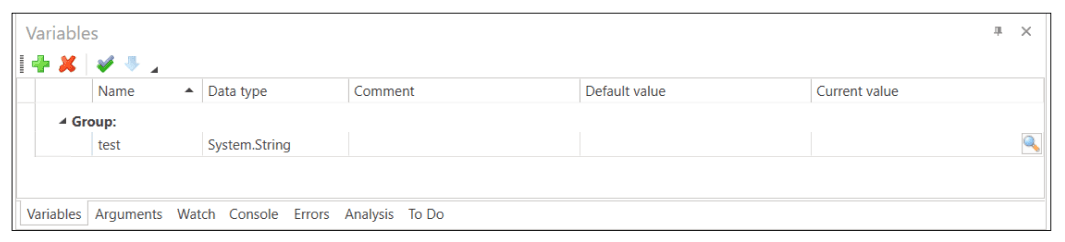

Editing To change a variable, go to the Variables panel and double-click the row with the variable whose value you want to change. An edit window will open.

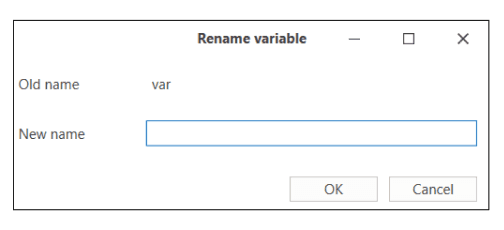

Renaming

It is recommended to change the variable name separately. For this, there is a Rename variable button on the panel . Only in this case, the changes will be applied to the entire process in which it is used.

Select the variable.
Click Rename.
Enter the new name.

⚠️

The variable name should not match parameter name from the search template. Otherwise, it will not be renamed. Example: if the variable is assigned the name Items, but the process also uses a search template with a parameter Items, then renaming the variable will not lead to the expected result.

Deleting

Select the variable.
Click the Delete variable button or the Delete key.

Debugging and viewing values

During debugging, variable values are displayed:

In the Output panel
In the Current value column

For convenient viewing of the current value, click the View button.

An edit window will open. Data can be copied using the hotkeys Ctrl + C or the Copy command (context menu). Structured data is serialized in JSON format and will also be available as text.

To change the value during process execution, click the Change value button .

Paste the new value into the window and click the OK button.
